LM2/LZ0 Integrated Catch Can
The 3.0L LM2/LZ0 Duramax Diesel from the factory directs crankcase oil vapor and condensation direclty into the turbo inlet for reburning. This oil plates out and sticks to the turbocharger blades and heat exchanger coils reducing efficiency of the system. This oil residue will increase the pressure drop across the heat exchanger resulting in higher backpressure placed on the turbo and worse fuel economy.

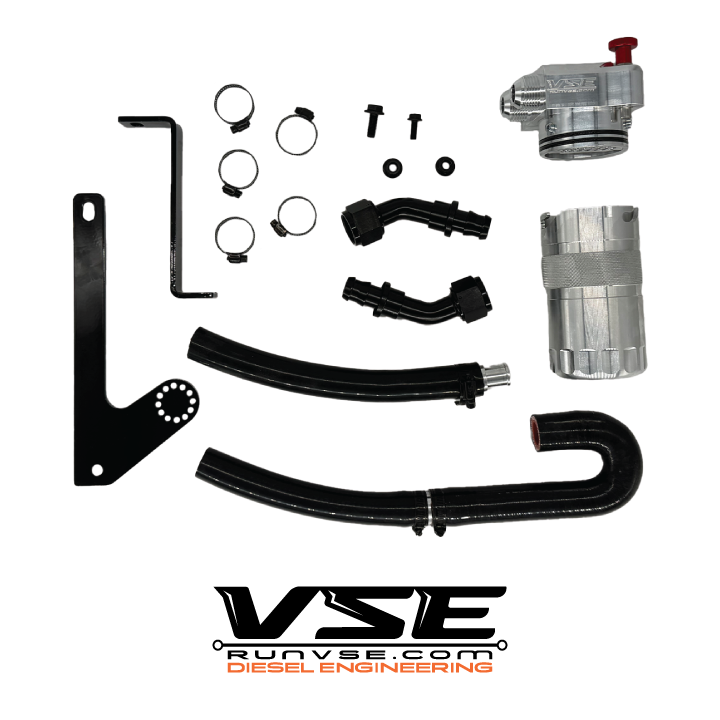

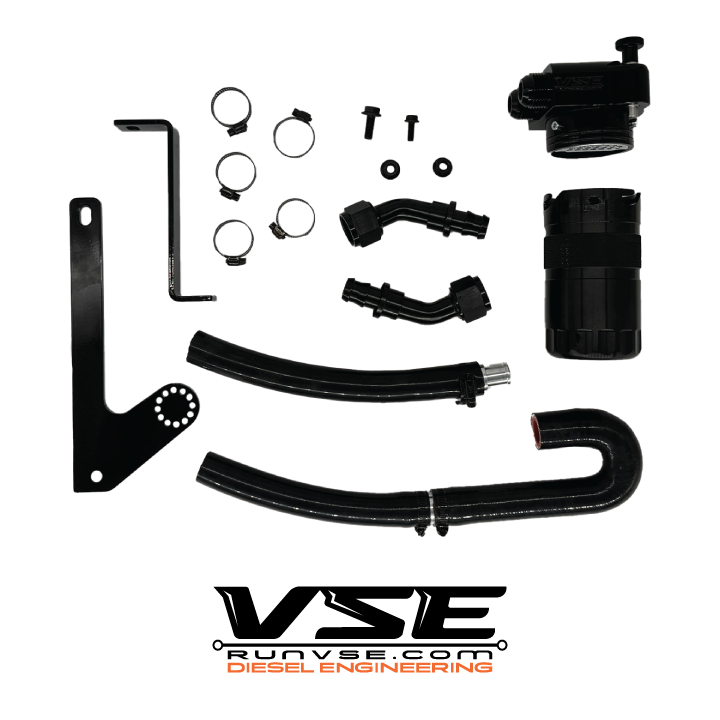

We have designed an integrated OEM appearing catch can system to remove this oil and water vapor intrusion as well as provides the same exact crank case vacuum draw as the factory to protect the seals of the motor.
Features:
- Plug and play system
- Will not void any warranty
- Integrated drain valve
- Maintains factory crank case pressure under all driving conditions
Fittment
- ALL 2020-2025 3.0L GM Duramax equipped 1500 Sierra / Silverado
- ALL 2020-2025 3.0L GM Duramax equipped SUVs
Installation Time - 30 minutes
** Warranty Disclaimer VIN Specific Enterprises LLC backs this product against manufacturer defects, defects in workmanship, and defects in quality. VIN Specific Enterprises LLC will not be held responsible for misuse of this product or damage that results from incorrect installation or service. If there are questions regarding installation, or warranty call 1-833-789-7700 !!
3 Reviews
-
LM2/LZO CCV VSE Catch Can
Easy install with a set of cable hose clamp pliers. Does what they claim and looks/fits good under the hood. I had to trim the return hose a little so it wouldn't rub on the rear of the heat exchanger. Would recommend this to 3.0 owners looking to protect their turbo and air charge cooler. This also helps keep carbon build up off the intake valves. Would buy again.
-
Fitment
The use of spring clamps is foolish in these tight firewall impinged areas. I gave up and used screw type hose clamps. The final position. Of the separator leaves contact with hoses , that is worrisome. The instructions make now mention of the need to fight with a battery ground wire that is obstructing install and final position . I am gonna watch the hoses hitting the separator for abrasion. I will remove the devise if it occurs. Very disappointed with this kit
-
Catch can is awesome!
Fit with no issues, have not put many miles on the truck but the few hundred already had garbage in it. Get some decent long pliers for the pain in the ass OEM clamps off the turbo!!!! Other than fighting with those, install was a piece of cake.
